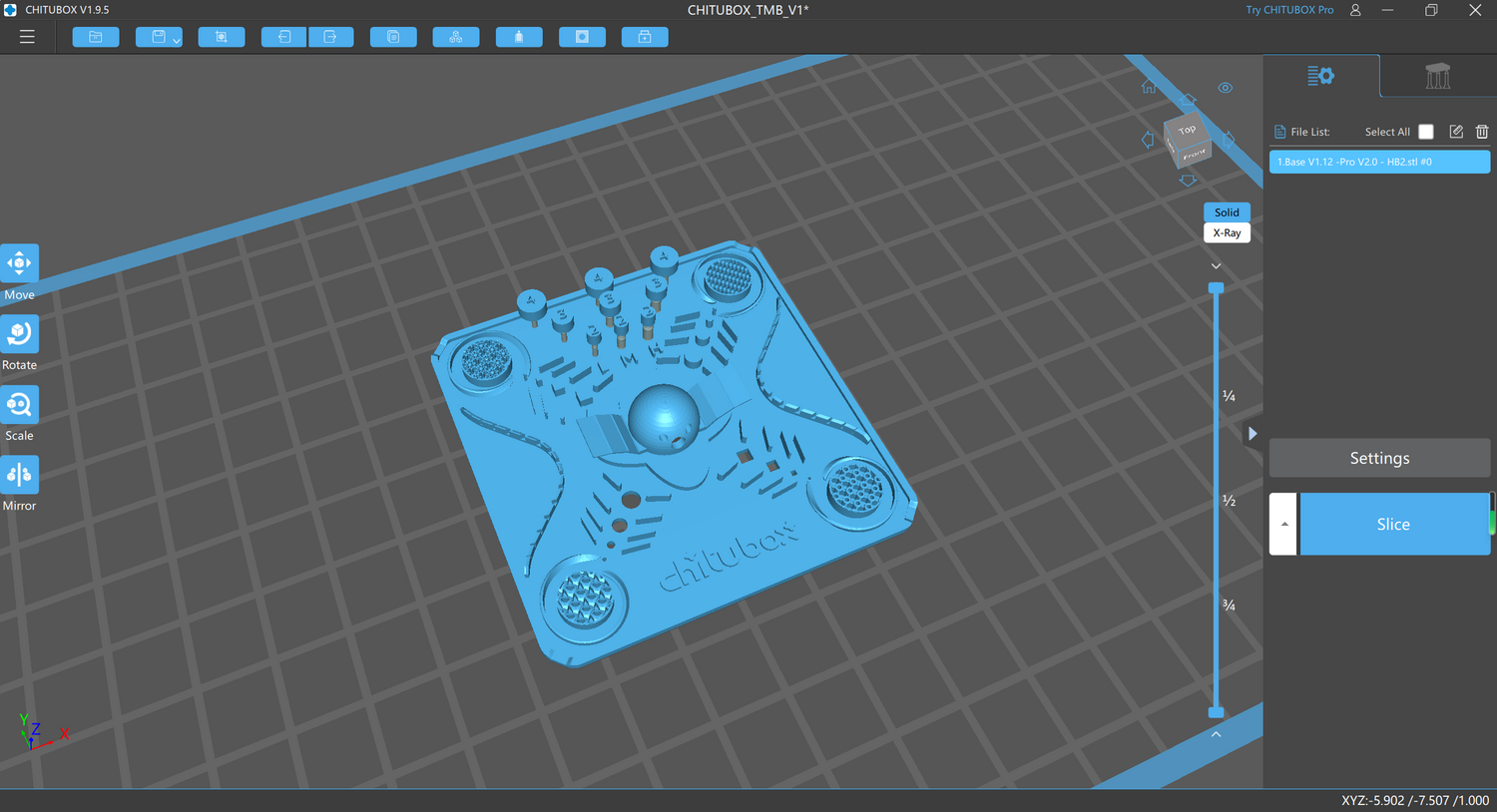

CHITUBOX TMB V1

CHITUBOX TMB V1 is used to assist in testing the best printing details, limit support printing feasibility, layer gradual change, wall thickness, vertical hole position and other related printing effect confirmation

CHITUBOX TMB V1 model mainly includes the following contents:

test
01. the main baseplate
02. Möbius ring evolution model
03. Detailed representation model
04. gradual change hole axis
05. gradual change boss
06. gradual change groove
07. LOGO elements
08. Model edge sealing
09. CHITUBOX icon
10. Tilt the wings
11. Ball body cabin
12. gradual change support



Serial number Parameters Parameter description Effect description
01 Primary baseplate L ( ) * W ( ) = 51mm * 51mm Assist in judging the deformation resistance of the printed model
02 Möbius ring evolution model The spaced suspended slice layer is 0-4 layers (0.025mm-0.15mm layer thickness) Assist in judging the ability of interlayer bonding
03 Detailed representation model Different types of detail structures Assist in judging the printing effect of the limit detail structure
04 Gradual change hole axis Hole and shaft with diameter dimensions: φ0.5, φ1, φ2, φ2.5 Assist in judging the printing effect of structural details such as holes, shafts, bosses, etc
05 Gradual change boss The thickness dimensions of the boss are: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm.
06 Gradual change groove Gradual change groove size: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm.
07 Logo elements Logo identification, the base of the ball body cabin /
08 Model edge banding Edge banding of design models Non-evaluation item, not completely and continuously connected to the surrounding edge sealing to avoid the formation of a closed cavity structure
09 CHITUBOX icon Brand identity /
10 Tilt wings The gradual change of the inclined wing structure includes: wing width size (6mm), transition wall thickness (0.4mm, 0.3mm, 0.2mm), inclination angle (45 °, 30 °, 15 °) and other elements. Assist in judging the printing effect of different tilt angles; Assist in judging the printing effect of different wall thicknesses; Assist in judging the corresponding lamellar transition effect when different inclination angle states
11 Ball body cabin Hemispherical structure with forward straight hole Assist in judging the transition effect of surface layer pattern; Assist in judging whether the vertical round hole is printed as a perfect circle
12 Gradual change support CHITUBOX software: coarse, medium and fine support Assist in judging the limit support parameters of the suspended area to ensure successful printing (The coverage area corresponds to the contact point spacing parameter of the CHITUBOX software)



Remarks: The size specifications corresponding to the inclined wings are shown in the figure below.
